Basler Stereo Camera STM-955g

  • Manufacturer: Basler
  • Model: STM-955g

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Normal standard:individual package with labels and outside is normal brown box.
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 1000PCS per month

Description

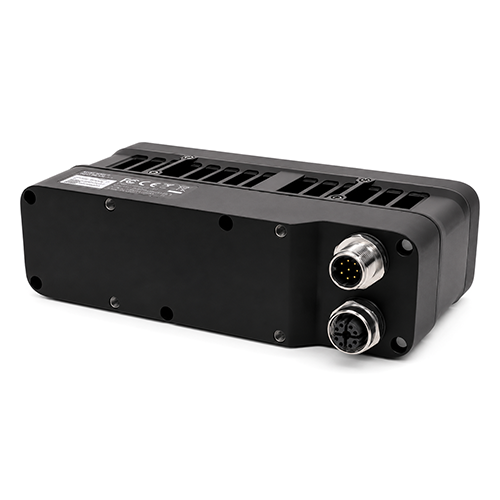

Basler Stereo CameraSTM-955g

GigE stereo camera with long working range for reliable 3D depth sensing in industrial and outdoor robotics applications.

The Basler Stereo mini STM-955g is a GigE stereo camera designed for reliable, long-range 3D sensing in industrial and outdoor environments. With an extended working range and high depth accuracy, it is suitable for navigation, obstacle detection, and scene understanding over larger distances. The camera combines a global-shutter stereo depth sensor with an integrated RGB sensor and features a visible-suppression filter to improve robustness under varying lighting conditions. Gigabit Ethernet connectivity supports long cable lengths and flexible system architectures, while PoE or DC power options simplify deployment. Its rugged IP67-rated housing and industrial design make the STM-955g well suited for autonomous mobile robots, outdoor robotics, and demanding industrial applications.

Specifications

General Information Order Number 2200002839
Manufacturer Basler
Camera Category 3D Camera
Camera Series Basler Stereo Camera
Product Family Stereo mini
Warranty 36 Months
Camera Data Baseline 95 mm
Shutter Global Shutter
Resolution (H x V) 1280 px × 800 px
Field of View 90° x 65° ± 3° @ 2m
Depth image resolution & FPS
  • 1280 x 800 @ 10 fps
  • 640 x 480 at 20 fps
Measuring Method Stereo Vision
EGO-motion (IMU) 200 Hz. low latency
Interface GigE
Camera Data Connector M12 X-coded 8-pin receptacle (PoE/GigE)
Working Range 0.31 m – 10 m
Camera I/O Connector M12 A-coded 8-pin receptacle (power & I/O)
Power Supply
  • PoE (IEEE 802.3af)
  • DC 9-24V (≥ 2 A)
Software Development Kit Operating System
  • ARM Linux (AArch64)
  • Linux (x86_64)
  • Windows: 10, 11 (64bit)
Housing Housing Size (L x W x H) 90 mm x 25 mm x 30 mm
Weight 520 g
Operating Temperature -10 °C – 50 °C
Protection Class IP67
Manufacturer Basler
Conformity √ CE (incl. RoHS)    √ FCC    √ Class B    √ KC    √ REACH    √ UKCA    √ WEE
