Hot

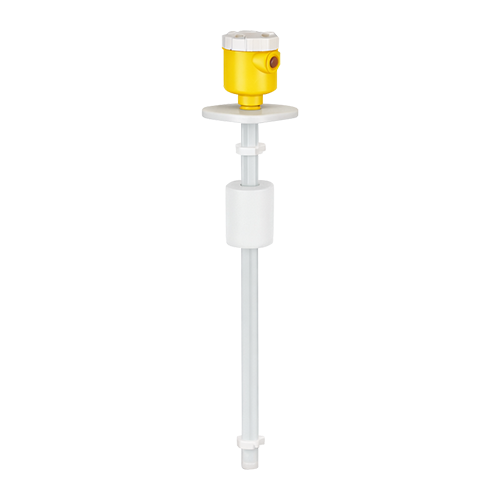

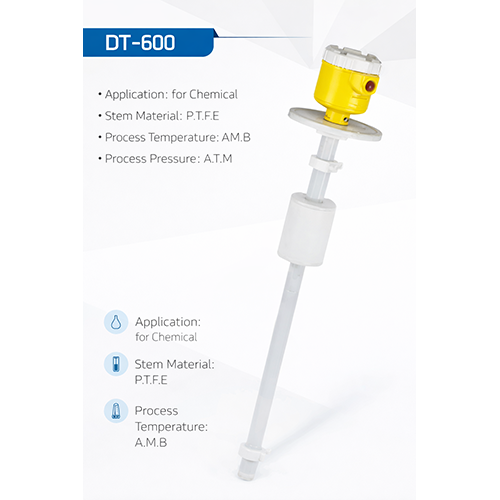

DT – 600 – VN
- Manufacturer: DAEHAN Sensor
- Model: DT - 600 - VN
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
0969.023.899
- Product details
- DOWNLOAD
Mô tả

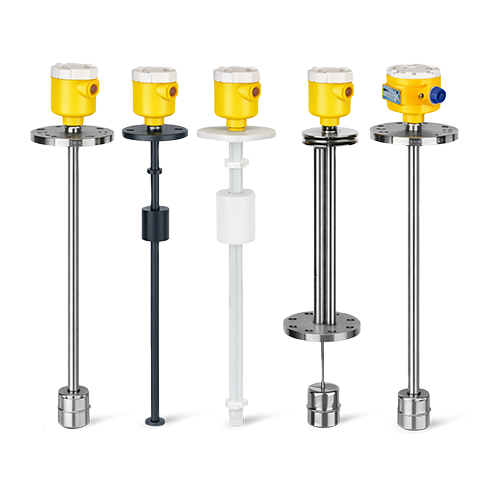

DT – Series
Operating Principle
Powered by electric voltage of DC24V, DT series make output of continuous analog 4~20mA current which is converted by resistors in the sensors.
And the continuous fluctuation of the current is caused by the up-and-down movement of the float which bears a permanent magnet inside. Finally, the current output is transmitted to the controller.
It is widely used sensor for liquid level indication, control and alarm. It can be used for special purpose chemicals tanks treated with P.V.C and P.T.F.E (P.V.D.F) lining. When connected with the controller, you can control as many motors and valves as you want.
SPECIFICATIONS
| Supply Voltage: DC 24V |
| Current Consumption: Max. 22mA |
| Measuring Range: Max. 6M |
| Signal Output: DC 4~20mA |
| Enclosure Rating: IP65 |
| Electrical Connection: 1/2 Inch PF |
| Material: HEAD: Aluminum / ABS / Nylon |
| Stem: Order Spec. |
| Flange (Socket): Order Spec. |
| Float: Order Spec. |
