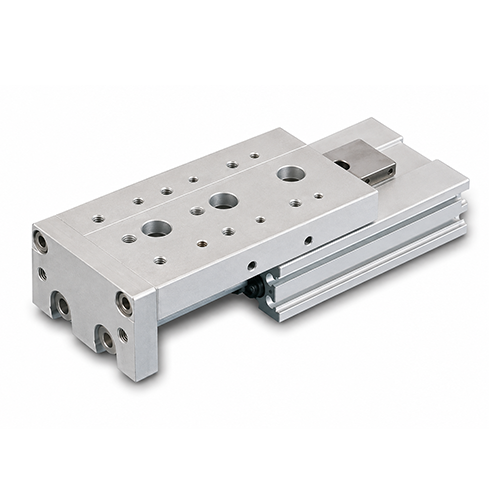

MDQA Compact Slide Cylinder
- Manufacturer: CHELIC
- Model: MDQA series Dual Rod
| Minimum Order Quantity: | 30pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 10-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- CATALOGUE
- 2D/3D Drawing
Description
MDQA-Dual Rod Table With Slider Mechanism
| Bore size | Ø8/Ø12/Ø16/Ø20 |
| Action | Double acting |
| Fluid | Air |
| Pressure range(kgf/cm² (kPa) | 1 ~ 7(100 ~ 700) |
| Max. operating pressure(kgf/cm² (kPa) | 9.5(950) |
| Ambient and fluid temperature(°C) | 0 ~ 60 |
| Piston speed(mm/sec) | 100 ~ 500 |
| Port size | Ø8/Ø12/Ø16:M5x0.8P Ø20:PT1/8 |
| Sensing device | With magnet |
