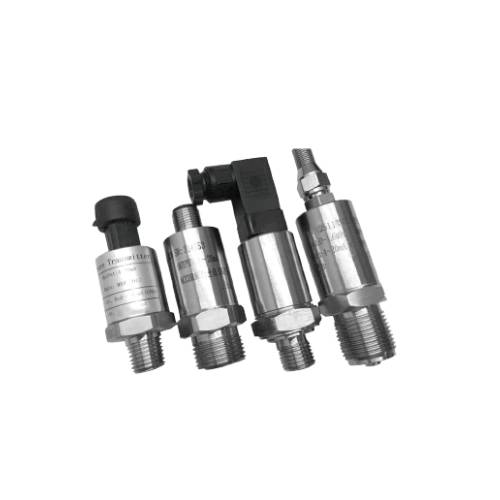

Micro-fusion Pressure Transmitter Pressure Sensor
- Manufacturer: China
- Model: PT10SR-2511
- PT10SR-2511 pressure transmitter has the pressure chamber which is made of single complete stainless steel piece, and all-metal sealing structure.
- The transmitter uses micro-fusion technology and has specially designed structure. It adopts the overall digital calibration and temperature compensation
- This transmitter can meet the OEM customers’ large volume demand and is highly cost efficient. It can be widely used in air pressure, hydraulic, and even worse media measuring environment, such as sewage, steam, light corrosive gases and liquids and other industrial or civil field pressure monitoring. Special customized products for users are also available.
Support 24/7
0969.023.899
- Product details
Mô tả
Parameter
| Pressure Range | -0.1MPa…0MPa~0.01MPa…160MPa(G) 0MPa~0.025MPa…60MPa(A) |
| Over-Pressure | 200%FS(≤10MPa) 150%FS(Others) |
| Ultimate Pressure | 400%FS(≤10MPa) 200%FS(Others) |
| Media | Liquid or Gas which is compatible with stainless steel |
| Power Supply | 10~30V DC,24V DC suggested |
| Output Signal | 4mA~20mA DC (2-wire) |
| Load | RL≤(U-10)/0.02 (Ω) |
| Accuracy | ±0.25%FS、±0.5%FS |
| Temperature Coefficient | ≤±0.03%FS/℃ |
| Long-term stability | ≤±0.5%FS/year |
| Environment temp. | -40℃ ~+80℃ |
| Media temp. | -40℃ ~+150℃ |
| Load | ≤(U-11)/0.02 (Ω) (2-wire); ≥10k(3-wire); ≥10k(3-wire) |
| Relative Humidity | 0~90%RH |
| Protection | IP65 |
| Frequency Response | >1kHz |
| Insulation | 100MΩ, 50VDC |
| Pressure port and housing | Stainless steel 1Cr18Ni9Ti |
| Electrical Connection | Hirschmann plug |
Application
The transmitter is widely used for high and low temperature measurement and control of Food, Medicine, Power station,Machinery, Automobile,Shipbuilding, Petroleum, Chemical industry,Metallurgy, Steam and Heat exchanging, Aviation, Spaceflight, and Scientific research and Laboratory instrument, etc.
