PIPELINE PVDF
- Manufacturer: SWD Plastic
- Model: DN20A (25A ~ 60A)
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 15-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
- Product details
- DOWNLOAD
Mô tả

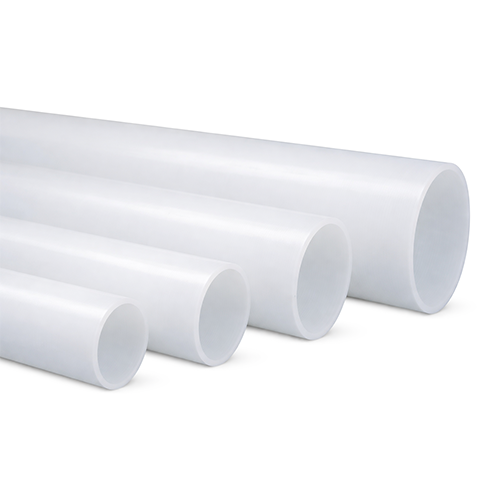

PVDF pipes
Polyvinylidene fluoride (PVDF) is a superior plastic material known for its robust resistance to chemicals, solvents, UV rays, radiation, and environmental conditions. Its versatile properties make it the material of choice in industries such as chemical corrosion prevention, electrical and electronic applications, semiconductor manufacturing, and water treatment, as well as the food, pharmaceutical, and bioengineering sectors.

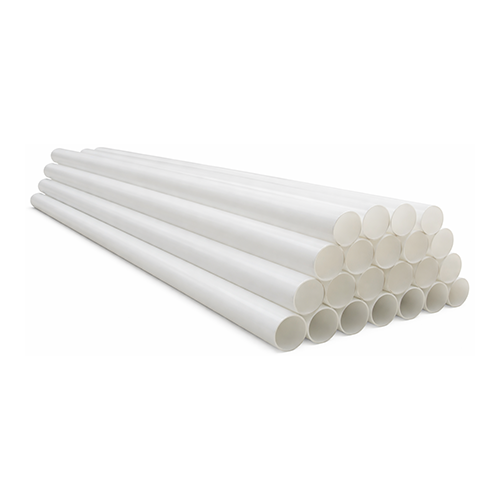

PVDF Pipes
- Size: De20-De225
- Length: 5M
- Pressure：PN16/SDR21/S10
- Connection: Socket fusion/butt fusion
- Standard: ISO 10931
Technica Parameter of PVDF
| ITEM | STANDARD | VALUE |
| Density | ISO1183 | 1.77cm3 |
| Volume Resistance | VDE0303 | >1013 |
| Water absorbability | DIN53 495 | 0.04% |
| Surface Resistance | VDE0303 | >1014 |
| Dielectric constant(1MHZ) | DIN53 483 | 7.25 |
| Continuous Operating Temperature | -40 ~140ºC | |
| Dielectric dissipation factor(1MHZ) | DIN53 483 | 0.18 |
| Yield tension strain | ISO527 | 50MPa |
| Leakage current intensity | DIN53 40 | KC300 |
| Ultimate tension strain | ISO527 | 46Mpa |
| Resistance to impact toughness | ISO179 | 252kj/m2 |
| Friction Factor | DIN53 375 | 0.34 |
| Gap impact toughness | ISO179 | 22kj/m2 |
| Combustion performance | UL94 | V-0 |
| Rockwell hardness | ISO2039-1 | 80MPa |
| Shore D hardness | DIN53 505 | 78MPa |
| Bending Strength | ISO178 | 80MPa |
| Modulus of Elasticity | ISO527 | 2000MPa |
Selecting PVDF (Polyvinylidene Fluoride) pipe fittings offers a multitude of benefits, making them a top choice across various industrial sectors. Here are some compelling factors that contribute to their popularity
Chemical Resistance:
Exceptional resistance to a wide range of aggressive chemicals and solvents, making them ideal for chemical processing industries.
High-Temperature Tolerance:
Capable of withstanding high temperatures, making them suitable for hot fluid transfer and high-temperature applications.
Mechanical Strength：
Exhibits high mechanical strength and durability, ensuring a long service life and reducing maintenance costs.
UV and Radiation Resistance
Resistant to UV rays and radiation, making them ideal for outdoor installations and specialized industrial processes.
High Purity：
Excellent for high-purity applications, such as in semiconductor manufacturing and pharmaceuticals, due to low leachability and contaminant absorption.
Versatility：
Applicable across various sectors, including water treatment, food and beverage, and bioengineering, thanks to their robust characteristics.
Cost-Effectiveness：
Although initial costs may be higher than standard materials, the long-term benefits of reduced maintenance and increased lifespan often result in cost savings.
