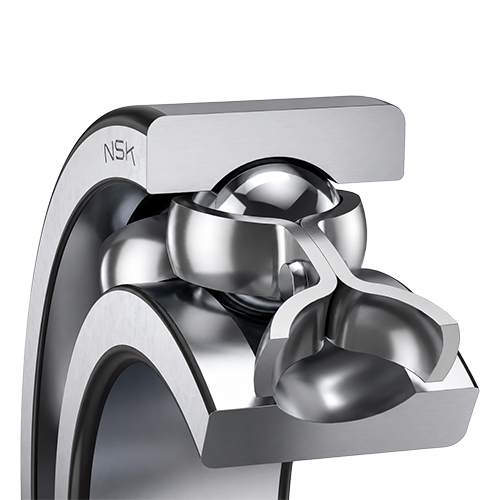

Single-Row Deep Groove Ball Bearings 6800 Serial
- Manufacturer: NSK
- Model: 6800 Serial
| Minimum Order Quantity: | 20pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details

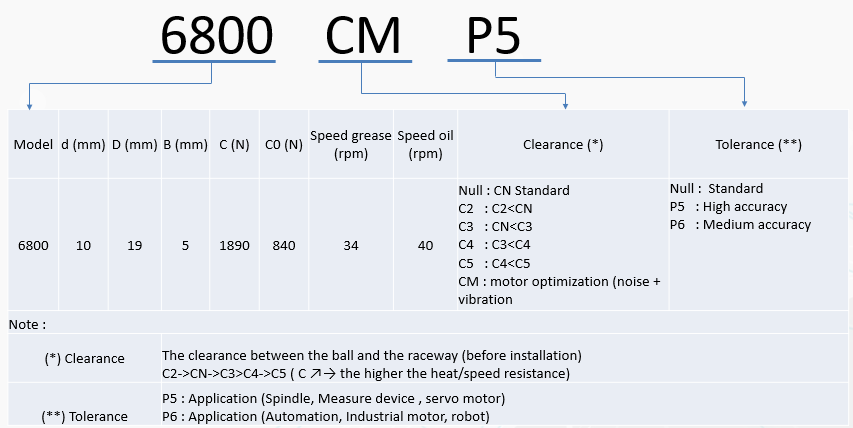

- SELECT GUIDE
Description

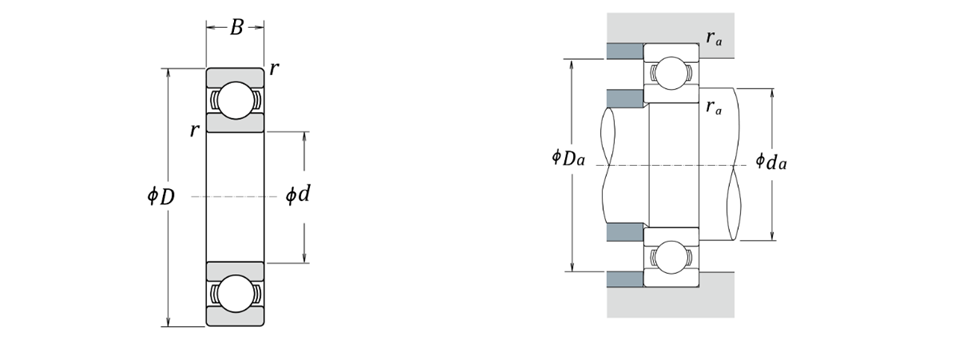

Designations
| d | 10 | mm | Bore diameter |
| D | 19 | mm | Outside diameter |
| B | 5 | mm | Width |
| r (min.) | 0.3 | mm | Chamfer dimension |
Basic Load Ratings
| Cr | 1890 | N | Basic dynamic load rating |
| C0r | 840 | N | Basic static load rating |
Speeds
| Grease | 34000 | min-1 | Grease lubrication |
| Oil (Oil-bath) | 40000 | min-1 | Oil-bath lubrication |
Abutment and Fillet Dimensions
| da (min.) | 12 | mm | Diameter of shaft abutment |
| da (max.) | 12 | mm | Diameter of shaft abutment |
| Da (max.) | 17 | mm | Diameter of housing abutment |
| ra (max.) | 0.3 | mm | Radius of shaft or housing fillet |
Calculation factors
| fo | 14.8 | – | Factor |
Additional information
| z | 10 | – | Number of Balls |
| Dw | 2.381 | mm | Ball Diameter |
Mass
| (approx.) | 0.005 | kg |
