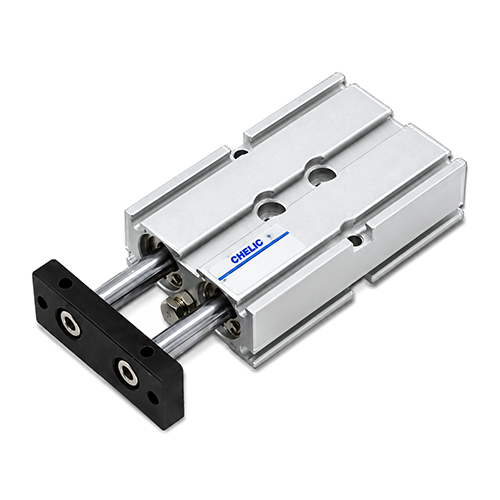

TD-Dual Rod Cylinder
- Manufacturer: CHELIC
- Model: TD-Dual Rod Cylinder
| Minimum Order Quantity: | 30pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 10-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- CATALOGUE
- 2D/3D Drawing
Description
TD-Dual Rod Cylinder
Features of Dual Rod Cylinder：
- Strong force: The output force is doubled with dual rods and pistons. Applicable to the occasion requires limited space and big force output. Dust-proof rod seal: Due to dust-proof rod seal design, dust on the rod can be removed and prolong the product life cycle.
| Bore size(mm) | Ø6/Ø10/Ø16/Ø20/Ø25/Ø32/Ø40 |
| Action | Double acting |
| Fluid | Air |
| Pressure range(kgf/cm² (kPa)) | 1 ~ 8.5 (100 ~ 850) |
| Max. service pressure(kgf/cm² (kPa)) | 9 (900) |
| Ambient and fluid temperature(°C) | 0~60 |
| Operated speed(mm/sec) | 50 ~ 700 |
| Stroke adjusting range | -5 ~ 0 |
| Port size | Ø6:M3×0.5 Ø10/Ø16/Ø20/Ø25:M5×0.8 Ø32/Ø40:PT1/8 |
| Sensing devicee | With magnet |
