VFD-Vacuum Filter
- Manufacturer: CHELIC
- Model: VFD-Vacuum Filter
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- CATALOGUE
- 2D/3D Drawings
Description

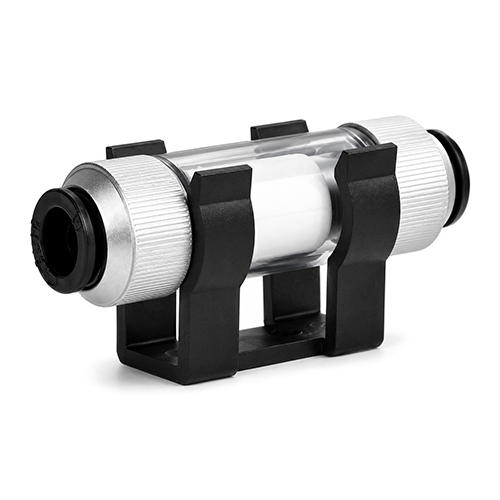

VFD-Vacuum Filter
Features of Vacuum Filter：
1.Negative pressure filtration:To filtering and removing dust and other foreign matter from the air. The density of the impurities is 10μm and the connection port size can be up to φ1.
2.Easy to replace: When the filter element is blocked and the flow is affected, the cup body is easy to disassemble and easy to replace.
| Model | VFD01、VFD02、VFD03、VFD04 |
| Port size(mm) | VFD01:4 VFD02:4、6 VFD03:6、8、10 VFD04:10、12 |
| Filter area(c㎡) | VFD01:5 VFD02:7.5 VFD03:12.5 VFD04:15 |
| Withstanding pressure(MPa(kPa)) | 0.3(300) |
| Pressure range(MPa(kPa)) | -0.1~0(-100~0) |
| Filter grade(µm) | 60 |
| Ambient and fluid temperature(°C) | 0~60 |
