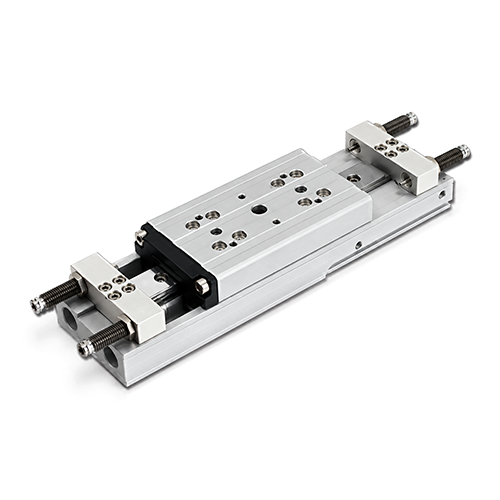

MGX Compact Slide Cylinder
- Manufacturer: CHELIC
- Model: MGX series Dual Rod
| Minimum Order Quantity: | 30pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 10-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 10,000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- CATALOGUE
- 2D/3D Drawing
Description
MGX-Dual Rod Slide Table
Features of Dual Rod Slide Table：
- With wide-format precision linear slides It adopts a wide slide rail guide, better pressure bias loads support. Double the power Double power cylinder within double piston designed. Operations can be adjusted with screws which combined maximum of 250 mm strokes. Buffer device can be sets Optional absorber can effectively reduce the piston shock force.
| Model | MBX-8/MBX-12/MBX-16/MBX-20 |
| Bore size(mm) | MBX-8:Ø8 MBX-12:Ø12 MBX-16:Ø16 MBX-20:Ø20 |
| Action | Double acting |
| Fluid | Air |
| Pressure range(kgf/cm² (kPa)) | 1.5∼7 ( 150∼700 ) |
| Max. service pressure(kgf/cm² (kPa)) | 6.5 ( 650 ) |
| Ambient and fluid temperature(°C) | 0~60 |
| Operated speed(mm/sec) | 100 ~ 500 |
| Lubrication | Lubrication free type |
| Port size | MBX-8/MBX-12/MBX-16:M5X0.8 MBX-20:PT1/8 |
| Cushion | Rubber washer |
