VMG-2-stage Vacuum Ejector
- Manufacturer: CHELIC
- Model: VMG-2-stage Vacuum Ejector
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- CATALOGUE
- 2D/3D Drawings
Description

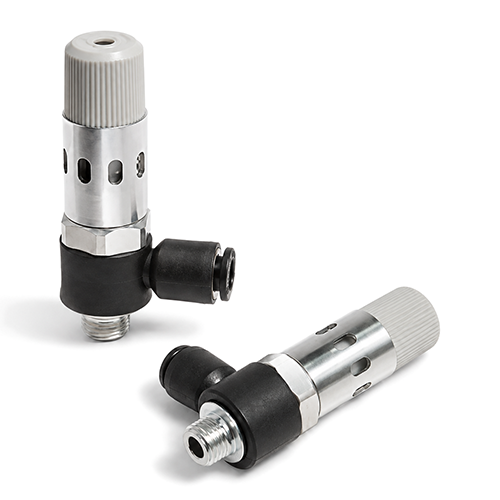

VMG-2-stage Vacuum Ejector
Features of 2-stage Vacuum Ejector：
- 1.Light and compact, easy to install.
2.Clogged filter could be replace directly.
3.Fitting design, easy piping.
| Fluid | Air |
| Pressure range MPa(kPa) | 0.2 ~ 0.5 ( 200 ~ 500 ) |
| Ambient and fluid temperature(°C) | 0 ~ 60 |
| Rated pressure(MPa(kPa)) | 0.5 ( 500 ) |
| Air consumption(L/min) | 74 |
| Vacuum pressure(kPa(mmHg )) | -91 or above( -682 ) |
| Suction flow(L/min) | 68( (Line distance 50cm) |
| Nozzle diameter(mm) | Ø1.2 |
| Port size(mm) | Ø6 |
| Lubrication | Unnecessary |
| Weight(g) | 37 |
