AIR10-1720
- Manufacturer: Peitian Robot
- Model: Small/Medium Payload AIR10-1720
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 25-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- DOWNLOAD
Description

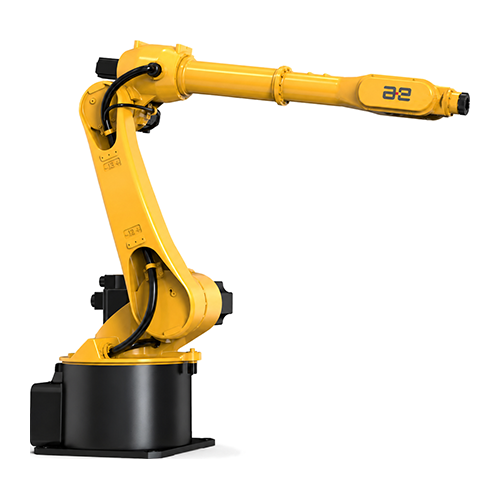

Small/Medium Payload AIR10-1720
High speed, High precision, High stability, High protection level, High rigidity, lightweight body, Saving usage cost & maintenance cost
Applicable industries: Computer, Communication & Consumer Electronics, Metal processing, Photovoltaic…
| 型号 Type | AIR10-1720 | |
|---|---|---|
| 轴数 Axes | 6 | |
| 负载 Payload | 10kg | |
| 机器人本体 Manipulator |
重量 Weight | 185kg |
| 最大运动范围 Reach | 1721mm | |
| 定位精度 Positioning accuracy |
位置重复定位精度 Position repeatability |
± 0.04mm |
| IP等级 Ingress Protection |
IP54 ( 腕部：IP67 ) ( Wrist：IP67 ) |
|
| 安装方式 Mounting |
地装 / 壁装 / 吊装 Floor/Wall/Ceiling |
|
| 运动范围 Working range |
轴1① Axis 1 | -170°/+170° |
| 轴2 Axis 2 | -85°/+150° | |
| 轴3 Axis 3 | -95°/+170° | |
| 轴4 Axis 4 | -195°/+195° | |
| 轴5 Axis 5 | -135°/+135° | |
| 轴6 Axis 6 | -360°/+360° | |
| 运动速度 Rotation rate |
轴1 Axis 1 | 200°/s |
| 轴2 Axis 2 | 200°/s | |
| 轴3 Axis 3 | 200°/s | |
| 轴4 Axis 4 | 370°/s | |
| 轴5 Axis 5 | 370°/s | |
| 轴6 Axis 6 | 600°/s | |
| 适用控制柜 Controllers |
inCube20/inCube20T/ARC5-12/ARC5-12T | |
| ① 若去除机械限位，运动范围可达 -180°/+180°。 If the mechanical limit is removed, the working range can reach -180° /+180°. ② 如需洁净版本，请联系销售。 For a clean room version, please contact sales. |
||
| Type | Reach (mm) | Payload (kg) | Ingress Protection | Axes | Mounting |
| AIR25-1700 | 1702 | 25 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR25-1840-HW | 1843 | 25 | IP65 | 6 | Floor / Ceiling / Wall |
| AIR12-2000-HW |
2005
|
12 | IP54 | 6 | Floor / Ceiling / Wall |
| AIR80-2560 | 2555 | 80 | IP54 | 6 | Floor / Ceiling |
| AIR80-2260 | 2555 | 80 | IP54 | 6 | Floor / Ceiling |
| AIR50-2700 | 2693 | 50 | IP54 | 6 | Floor / Ceiling |
| AIR50-2260 | 2255 | 50 | IP54 | 6 | Floor / Ceiling |
| AIR35-2700 | 1702 | 35 | IP54 | 6 | Floor / Ceiling |
| AIR35-1700 | 2701 | 35 | IP54 | 6 | Floor / Ceiling |
| AIR20-3100 | 3097 | 20 | IP54 | 6 | Floor / Ceiling |
| AIR20-2000 | 2001 | 20 | IP54 | 6 | Floor / Ceiling |
| AIR12-1420 | 1420 | 12 | IP54 | 6 | Floor / Ceiling |
| AIR6-1460-HW | 1460 | 6 | IP54 | 6 | Floor / Ceiling |
| AIR10-1720 | 1721 | 10 | IP54 | 6 | Floor / Ceiling |
| AIR10-1700-HW | 1460 | 10 | IP54 | 6 | Floor / Ceiling |
