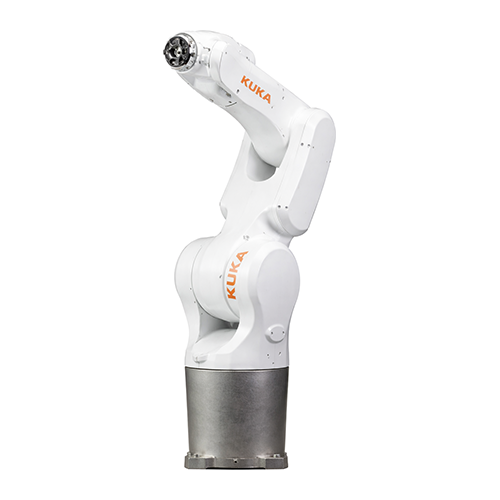

KR 4 R600
- Manufacturer: Kuka
- Model: KR 4 R600
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 25-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- DOWNLOAD
Description
Basic Data
Maximum payload: 4.63 kg
Rated payload: 4 kg
Maximum reach: 601 mm
Mounting position: Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283): 0.015 mm
Controller: KR C5 micro-2, KR C5 micro
Number of axes: 6
Ambient temperature during operation: 0 °C to 55 °C (273 K to 328 K)
Ambient temperature during stor./transp.: -40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529): IP40
Prot. rating, in-line wrist (IEC 60529): IP40
Cleanroom class (ISO 14644-1): Class 5 at 30% override
Field of application
Additive manufacturing, Applying/Painting/Glueing, Assembly, Handling, Machine loading/unloading, Measuring/Inspection, Palletizing/packaging, Pick-and-place
