AIR4-560
- Manufacturer: Peitian Robot
- Model: Desktop Series AIR4-560
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 25-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- DOWNLOAD
Description

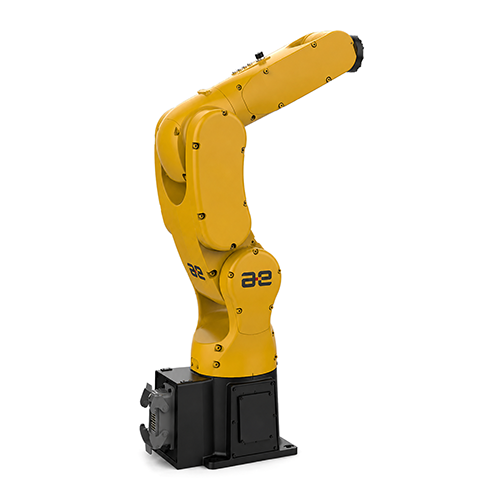

Desktop Series AIR4-560
High protection level, High speed, High precision, High stability
Applicable industries: Computer, Communication & Consumer Electronics, Metal processing, Food processing, Pharmaceutical manufacturing…
| 型号 Type | AIR4-560 | |
|---|---|---|
| 轴数 Axes | 6 | |
| 负载 Payload | 4kg | |
| 机器人本体 Manipulator |
重量 Weight | 23kg |
| 最大运动范围 Reach | 560mm | |
| 定位精度 Positioning accuracy |
位置重复定位精度 Position repeatability |
±0.02mm |
| IP等级 Ingress Protection |
IP65 | |
| 安装方式 Mounting |
地装 / 壁装 / 吊装 Floor/Wall/Ceiling |
|
| 运动范围 Working range |
轴1① Axis 1 | -170°/+170° |
| 轴2 Axis 2 | -110°/+120° | |
| 轴3 Axis 3 | 108°/+152° | |
| 轴4 Axis 4 | -200°/+200° | |
| 轴5 Axis 5 | -118°/+118° | |
| 轴6 Axis 6 | -350°/+350° | |
| 运动速度 Rotation rate |
轴1 Axis 1 | 450°/s |
| 轴2 Axis 2 | 450°/s | |
| 轴3 Axis 3 | 525°/s | |
| 轴4 Axis 4 | 600°/s | |
| 轴5 Axis 5 | 600°/s | |
| 轴6 Axis 6 | 800°/s | |
| 适用控制柜 Controllers |
inCube20/inCube20T | |
| ①若去除机械限位，运动范围可达 -180°/+180°。 If the mechanical limit is removed, the working range can reach -180° /+180°. | ||
| Type | Reach (mm) | Payload (kg) | Ingress Protection | Axes | Mounting |
| AIR4-560 | 560 | 4 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR4-560-HW | 560 | 4 | IP65 | 6 | Floor / Ceiling / Wall |
| AIR7-920 | 920 | 7 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR8-710 | 710 | 8 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR10-1210 | 1211 | 10 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR15-950 | 947 | 15 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR15-950-HI | 947 | 15 | IP67 | 6 | Floor / Ceiling / Wall |
| AIR15-950/3 | 947 | 15 | IP67 | 6 | Ceiling |
| AIR15-950/4-HI | 947 | 15 | IP67 | 6 | Ceiling |
