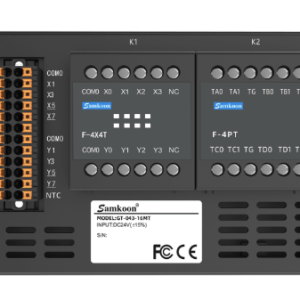

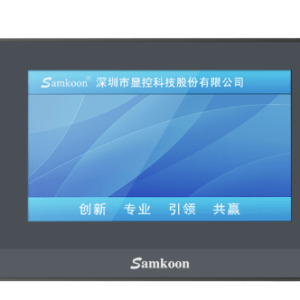

HMI integrated with PLC GT-043-16MT
- Manufacturer: Samkoon
- Model: GT-043-16MT
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
0969.023.899
- Product details
- DOWNLOAD
Mô tả
🔧 Specification
| Category | Specification |
| CPU | Cortex A7 1GHz, Dual Core 32 bit 200 MHz |
| RAM | 128MB DDR |

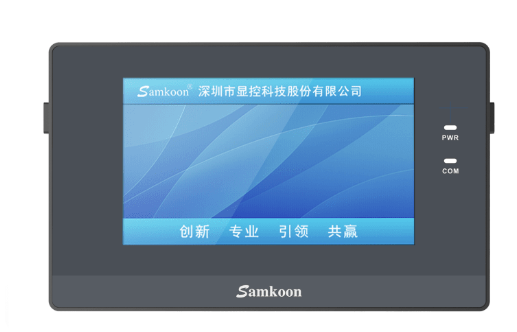

| Display | 4.3” TFT |
| Resolution | 480 × 272 |
| Touch Panel | 4-wire resistive |

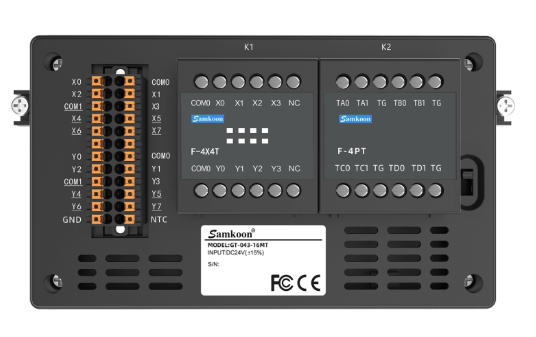

| Digital Input (DI) | 8 channels |
| Digital Output (DO) | 8 channels (NPN transistor) |
| High-speed Counter | 2 channels |
| Pulse Output | 4 channels (up to 200kHz) |

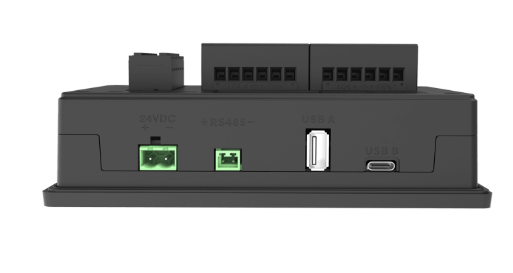

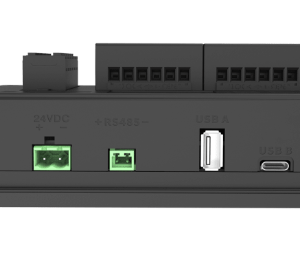

| Communication | RS485 (Modbus RTU), USB |
| Expansion | – Analog modules (max 8AI + 8AO) – Temperature input 4 chanel (Suport PID control) – I/O modules (max 16 Digital input or 16 Digital Output) |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | -20 ~ 55°C |
⚙️ Key Technical Features
- Independent multitasking for HMI and PLC without performance degradation
- Multi-axis motion control with high-speed pulse output (200kHz)
- PLC programming support: Ladder, SFC, Function Block, C
- Integrated HMI + PLC reduces system cost and installation space
- Stable Modbus RTU communication for easy system integration
- Flexible analog expansion for process control applications
- Fast I/O response suitable for real-time control
- High reliability for industrial environments (IP65 protection)
🏭 Applications
- High-speed packaging machines
- Multi-axis servo/stepper control systems
- Mini CNC machines
- Conveyor synchronization systems
- Labeling, filling, and automated assembly machines
