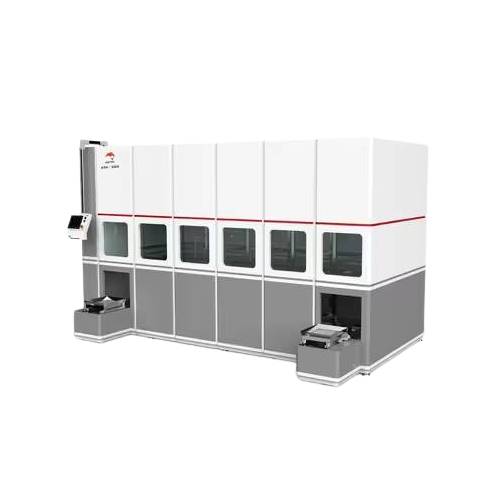

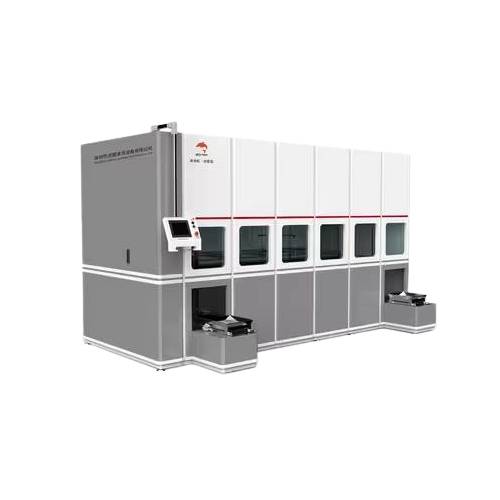

BSCI 2400W Automatic Ultrasonic Cleaner 175L With Filtration Hot Air Drying
- Manufacturer: China
- Model: JTM-3096AD
| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Skymen |
| Certification: | RoHS, CE, FCC, SGS |
| Model Number: | JTM-3096AD |
| Document: | Product Brochure PDF |
- Product details
- ORDER CODE
- Download
Mô tả
Skymen provides multi-stage aqueous ultrasonic cleaning, high purity deionised water rinsing, multi-frequency variable power ultrasonics, and hot air drying to remove organic residues down to ppb (parts per billion) levels and particulate contamination to 0.1 microns
The process is well established for high specification, high volume cleaning applications, including computer disk drive (HDD) components such as base castings, top covers and head stack assemblies (HSAs) for the world’s leading Hard Disk drive manufacturers.
Multi-head Autotrans automation with pick and place operation allows each Autotrans head to release baskets in process tanks while performing other transfers. Autotrans program intelligence continuously monitors basket positions to maximise throughput and system integrity.
Specification sheet:
|
1
|
Model
|
JTM-3096AD
|
|
|
2
|
1st Chamber |
Function
|
Ultrasonic cleaning + Filter+ Hot water cleaning
|
|
Ultrasonic Frequency
|
28/40kHz (other frequency can be customized)
|
||
| Tank Material |
SUS 304 (SUS 316 can be customized)
|
||
| Thickness of tank | 2mm | ||
|
Inner tank dimension
|
700*500*500mm
|
||
|
Tank Capacity
|
175L
|
||
|
Transducer
|
48pcs
|
||
|
Ultrasonic Power
|
2400W
|
||
|
Heating Power
|
6000W
|
||
|
Time setting of Ultrasonic
|
0~99 hours
|
||
|
Temperature setting
|
Room temperature ~ 95°C adjustable
|
||
|
Drain value
|
Yes
|
||
|
Water inlet/outlet
|
Yes
|
||
|
Filter
|
1 set, connect with 1st tank
|
||
| Size of filter tank | 500*300*300mm | ||
| Filtet element precision | 5/10μ | ||
|
Generator
|
1pcs
|
||
| Generator power control | 2400W | ||
| Basket | Yes | ||
|
Basket load
|
150KG
|
||
| 3 | 2nd Chamber | Function | Ultrasonic cleaning + Bubbling + Hot water cleaning |
| Ultrasonic Frequency | 28/40kHz (other frequency can be customized) | ||
| Tank Material | SUS 304 (SUS 316 can be customized) | ||
| Thickness of tank | 2mm | ||
| Inner tank dimension | 700*500*500mm | ||
| Tank Capacity | 175L | ||
| Transducer | 48pcs | ||
| Ultrasonic Power | 2400W | ||
| Heating Power | 6000W | ||
| Time setting of Ultrasonic | 0~99 hours | ||
| Temperature setting | Room temperature ~ 95°C adjustable | ||
| Drain value |
Yes
|
||
| Water inlet/outlet |
Yes
|
||
| Bubbling system | Yes, air compressor is provided by user | ||
| Generator | 1pcs | ||
| Generator power control | 2400W | ||
| Basket | Yes | ||
| Basket load | 150KG | ||
|
3
|
3rd Chamber
|
Function
|
Hot air drying tank
|
|
Inner tank dimension
|
600*500*450mm
|
||
|
Turbines power
|
750W
|
||
|
Dryer power
|
3000W
|
||
| 4 | Working way of machine | Working way | Full automatic |
| Loading and unloding platform | Yes | ||
| Moving way of basket | By mechanical arm | ||
| Control way | PLC touch screen | ||
| 5 |
Warranty
|
1 year warranty for spare parts, all life technical support
|
|
|
6
|
Certificate
|
CE, RoHS; FCC, REACH
|
|
|
7
|
Production time
|
35 working days after deposit
|
|
Working way
The entire process of putting the basket into the cleaning tank, removing the basket and moving the basket between the tanks is automatically completed by a single-arm manipulator. This ultrasonic cleaning machine has a total of 3 working tanks, plus 1 loading and unloading station, a total of 4 stations .
