SCARA AIR3SC-400
- Manufacturer: Peitian Robot
- Model: SCARA AIR3SC-400
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 25-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- DOWNLOAD
Description

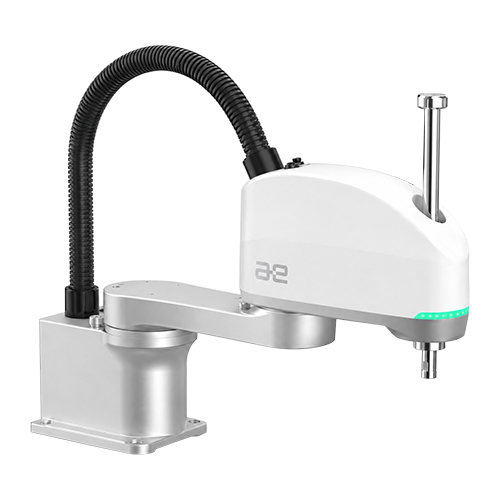

SCARA AIR3SC-400
Compact structure, High speed, High position repeatability, Small & Agile, Drip-proof and Dust-proof, lightweight body
Applicable industries: Computer, Communication & Consumer Electronics, Pharmaceutical manufacturing, Food processing, Machining…
| Type | AIR3SC-400 | ||
|---|---|---|---|
| 轴数 Axes | 4 | ||
| 负载 Payload | 3kg | ||
| 机器人本体 Manipulator |
重量 Weight | 14.4kg | |
| 最大运动范围 Reach | 400mm | ||
| 定位精度 Positioning accuracy |
位置重复定位精度 Position repeatability |
轴1+轴2 Axis 1 + Axis 2 |
±0.01mm |
| 轴3 Axis 3 |
±0.01mm | ||
| 轴4 Axis 4 |
±0.005° | ||
| IP等级 Ingress Protection |
IP20 | ||
| 安装方式 Mounting |
地装 Floor |
||
| 运动范围 Working range |
轴1 Axis 1 | -136°/+136° | |
| 轴2 Axis 2 | -141°/+141° | ||
| 轴3 Axis 3 | 150 mm | ||
| 轴4 Axis 4 | -360°/+360° | ||
| 运动速度 Rotation rate |
轴1 Axis 1 | 600°/s | |
| 轴2 Axis 2 | 600°/s | ||
| 轴3 Axis 3 | 1100mm/s | ||
| 轴4 Axis 4 | 2600°/s | ||
| 适用控制柜 Controllers |
inCube2S-6 | ||
| Type | Reach | Payload | Ingress Protection | Axes | Mounting |
| AIR3SC-400 | 400 | 3 | IP20 | 4 | Floor |
| AIR6SC-500 | 500 | 6 | IP20 | 4 | Floor |
| AIR6SC-600 | 600 | 6 | IP20 | 4 | Floor |
| AIR6SC-750 | 750 | 6 | IP20 | 4 | Floor |
| AIR12SC-600 | 600 | 12 | IP30/IP54 | 4 | Floor/Ceiling |
| AIR12SC-700 | 700 | 12 | IP30/IP54 | 4 | Floor/Ceiling |
| AIR12SC-820 | 825 | 12 | IP30/IP54 | 4 | Floor/Ceiling |
| AIR12SC-1000 | 1000 | 12 | IP30/IP54 | 4 | Floor/Ceiling |
| AIR20SC-820 | 825 | 20 | IP30/IP54 | 4 | Floor/Ceiling |
| AIR20SC-1000 | 1000 | 20 | IP30/IP54 | 4 | Floor/Ceiling |
