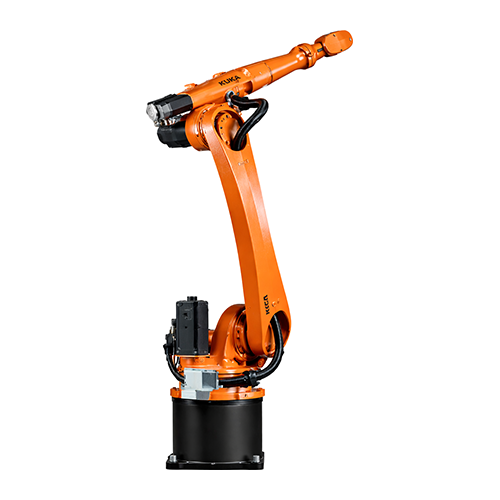

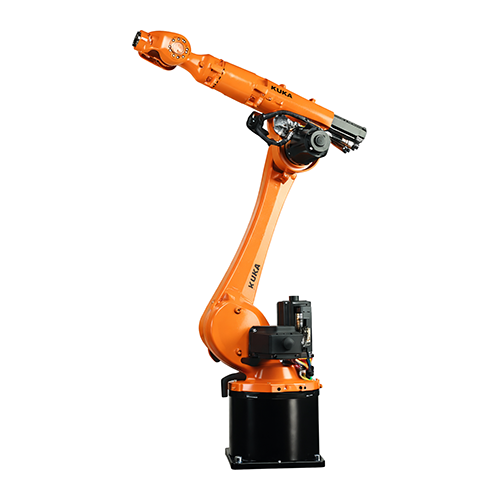

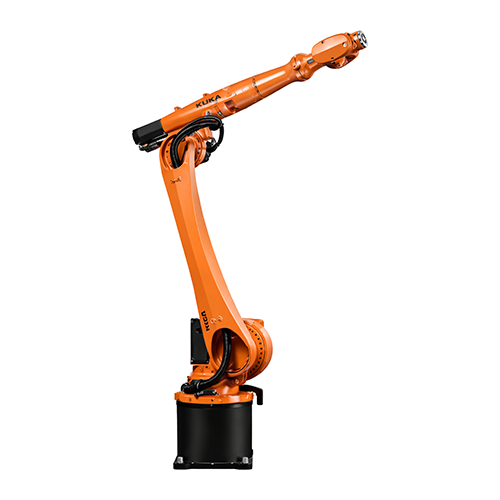

KR 20 R1810-2
- Manufacturer: Kuka
- Model: KR 20 R1810-2
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 25-30 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
+84 969. 023. 899 - (+84 707. 583. 779)
- Product details
- DOWNLOAD
Description
Basic Data
Maximum payload: 23.9 kg
Rated payload: 20 kg
Maximum reach: 1813 mm
Mounting position: Floor, Ceiling, Wall, Desired angle
Pose repeatability (ISO 9283): 0.04 mm
Number of axes: 6
Ambient temperature during operation: 5 °C to 55 °C (278 K to 328 K)
Ambient temperature during stor./transp.: -20 °C to 60 °C (253 K to 333 K)
Protection rating (IEC 60529): IP65
Prot. rating, in-line wrist (IEC 60529): IP65
Class 5 at 40% override, Class 6 at 80% override
Field of application
Arc Welding, Assembly, Cutting/Separation, Handling, Machine loading/unloading, Machining, Measuring/Inspection, Palletizing/packaging, Pick-and-place
