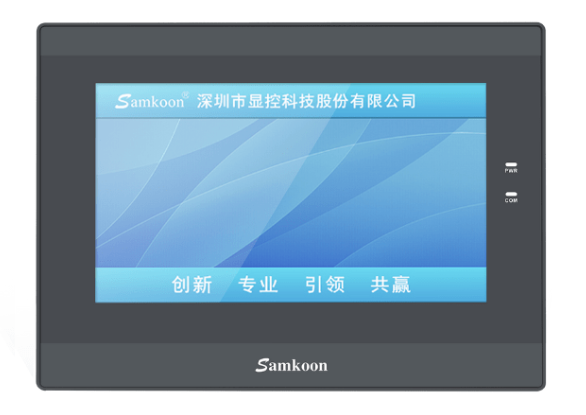

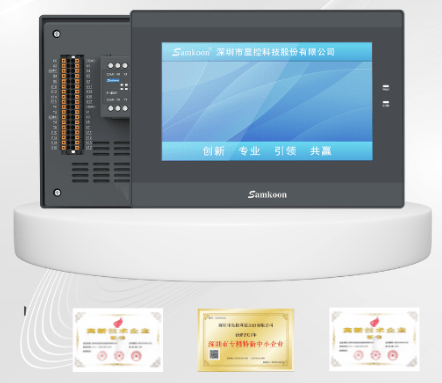

HMI integrated with PLC GT-070-32MT-G
- Manufacturer: Samkoon
- Model: GT-070-32MT-G
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Normal standard:individual package with labels and outside is normal brown box. |
| Delivery Time: | 7-10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000PCS per month |
Support 24/7
0969.023.899
- Product details
- DOWNLOAD
Mô tả
🔧 Specification
| Category | Specification |
| CPU | Cortex A7 dual-core 1GHz |
| RAM | 128MB DDR |
| Display | 7.0” TFT |
| Resolution | 800 × 480 |
| Touch Panel | 4-wire resistive |
| Digital Input (DI) | 16 channels |
| Digital Output (DO) | 16 channels (NPN transistor) |
| High-speed Counter | 4 channels |
| Pulse Output | 4 channels (up to 200kHz) |
| Communication | RS485 (Modbus RTU), USB, Ethernet |
| Expansion | – Analog modules (max 8AI + 8AO) – Temperature input 4 chanel (Suport PID control) – I/O modules (max 16 Digital input or 16 Digital Output) |
| Protection Rating | IP65 (front panel) |
| Operating Temperature | -20 ~ 55°C |
⚙️ Key Technical Features
- Independent multitasking for HMI and PLC without performance degradation
- Multi-axis motion control with high-speed pulse output (200kHz)
- PLC programming support: Ladder, SFC, Function Block, C
- Integrated HMI + PLC reduces system cost and installation space
- Stable Modbus RTU communication for easy system integration
- Flexible analog expansion for process control applications
- Fast I/O response suitable for real-time control
- High reliability for industrial environments (IP65 protection)
🏭 Applications
- Multi-axis motion control systems (servo/stepper up to 4 axes)
- Packaging and filling machines (high-speed, synchronized control)
- Conveyor and material handling systems (multi-line coordination)
- Automatic assembly and production lines
- CNC mini / cutting / engraving machines
- Labeling and printing machines
- Food & beverage processing systems
- Smart factory integration (Ethernet communication, SCADA connection)
- Systems requiring combined HMI monitoring + PLC control in one device
